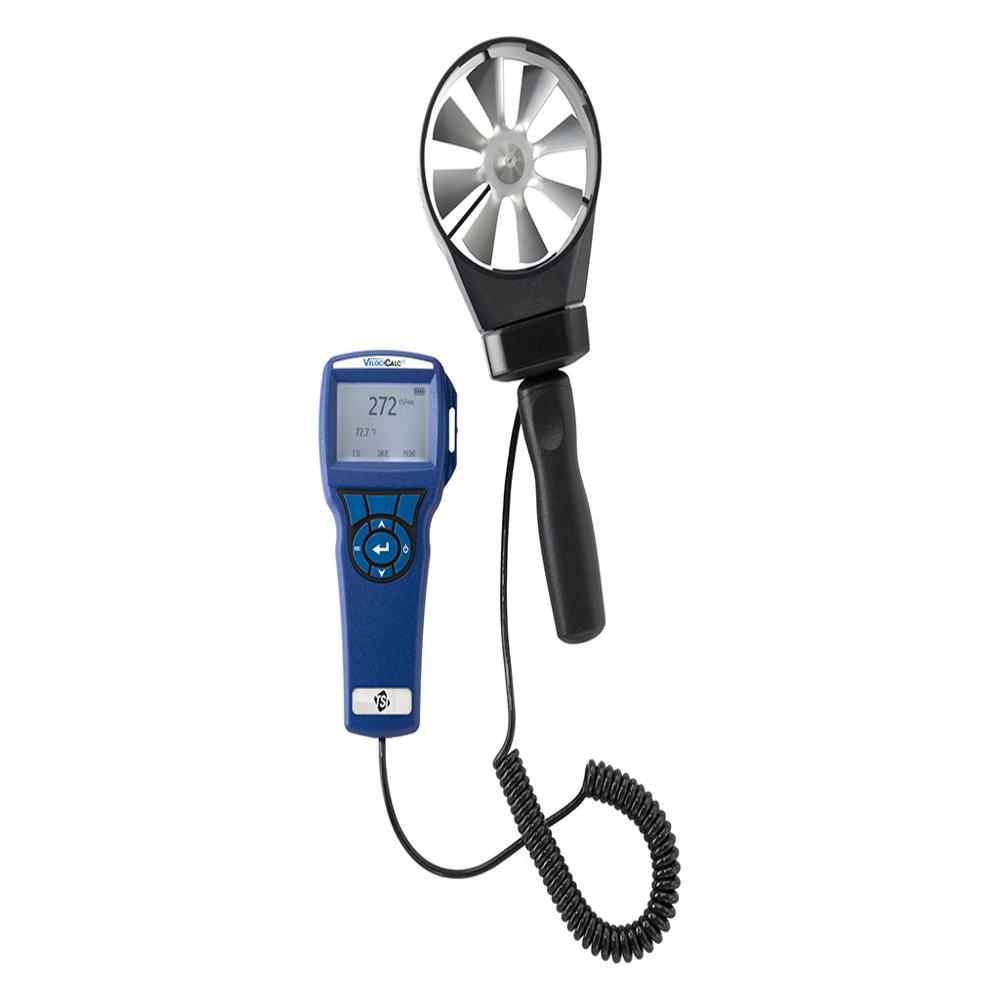

Vane Anemometer

Name: Vane Anemometer
Brand: Techmach Industrial Solutions
Price: 15000.0 INR
Availability: InStock

Price 150000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Vane Anemometer Specification

Accuracy
2% of reading

Mounting Type
Handheld

Automation Grade
Automatic

Response Time
1 Second

Measuring Range
0.4 to 30 m/s

Test Range
0.4 - 30 m/s (air velocity)

Display Type
LCD Digital Display

Operating Voltage
9V DC

Humidity
10% - 90% RH

Equipment Type
Vane Anemometer

Power Supply
9V Battery

Resolution
0.01 m/s

Application
Air velocity, temperature and humidity measurement

Gas Pressure
Atmospheric

Temperature
0C to 50C

Features
Data Hold, Max/Min Value, Auto Power Off

Usage
Wind speed and airflow measurement

Machine Weight
150 g

Control Mode
Manual

Battery Life
Approx. 50 hours

Low Battery Indication
Yes

Data Storage
Yes (Last reading hold)

Sensor Type
Vane type

Dimensions
165 x 85 x 38 mm

Color
Black and Yellow

Air Flow Units
m/s, ft/min, km/h, mph, knots

Operating Environment
Indoor/Outdoor

Package Includes
Main Unit, User Manual, Battery

About Vane Anemometer

Reversible 4-inch (100 mm) head to read supply and exhaust flows
Calculates volumetric flow rate when user inputs duct shape and size, or area
Sampling function records multiple point measurements
Automatic averaging of air velocity
Simultaneously displays velocity and temperature
Sweep mode for one overall measurement
Optional 36-inch telescopic probe available
Compatible with optional Aircone flow hoods
Logs 12,700+ samples with a time and date stamp
Recall, review, store data

Advanced Wind Measurement Technology

Experience precise measurement of wind speed, airflow, temperature, and humidity with this compact vane anemometer. Its high-sensitivity sensor and rapid response time ensure reliable readings for atmospheric pressure and air velocity, supporting a broad range of industrial and environmental monitoring applications.

User-friendly Features for Efficient Operation

The anemometer offers convenient features such as data hold, auto power off, and Max/Min value tracking. The LCD digital display presents information clearly, while the low battery indicator alerts users well in advance, ensuring uninterrupted performance throughout extended measuring sessions.

Versatile Design and Robust Construction

With a rugged black and yellow casing and lightweight structure (150 g), this device is ideal for both field and lab use. Its handheld format, generous measuring range, and automated functionality make it indispensable for inspectors, engineers, and HVAC professionals requiring versatile performance.

FAQ's of Vane Anemometer:

Q: How do I use the Vane Anemometer to measure wind speed accurately?

A: To measure wind speed, turn on the anemometer, select the desired unit (m/s, ft/min, km/h, mph, or knots), and hold the device in the airflow. The vane sensor will automatically detect wind speed, displaying real-time results on the LCD screen.

Q: What is the process for storing and holding readings on this device?

A: Press the 'Hold' button during measurement to store the current reading. The last recorded value remains on display until you choose to release the hold or take a new measurement, allowing easy documentation and comparison.

Q: When should I replace the battery in the Vane Anemometer?

A: The device includes a low battery indicator that appears when the 9V battery needs replacement. Under normal usage, the anemometer operates for up to 50 hours before requiring a fresh battery.

Q: Where can I use this vane anemometer effectively?

A: This instrument can be used both indoors and outdoors for a wide range of applications, including HVAC inspection, environmental monitoring, and industrial airflow assessment. Its robust design is suitable for field and laboratory conditions.

Q: What are the benefits of using this anemometer's data storage and Max/Min features?

A: Data storage allows you to retain the last measurement result, while the Max/Min value functions enable you to track the highest and lowest recorded values during a session. These features are ideal for in-depth analysis and accurate reporting.

Q: How does the device ensure accurate and reliable measurements?

A: The vane anemometer employs a sensitive vane sensor, offers high measurement accuracy (2% of reading), a rapid response time (1 second), and shows fine detail with a resolution of 0.01 m/s, ensuring your readings are both reliable and consistent.
