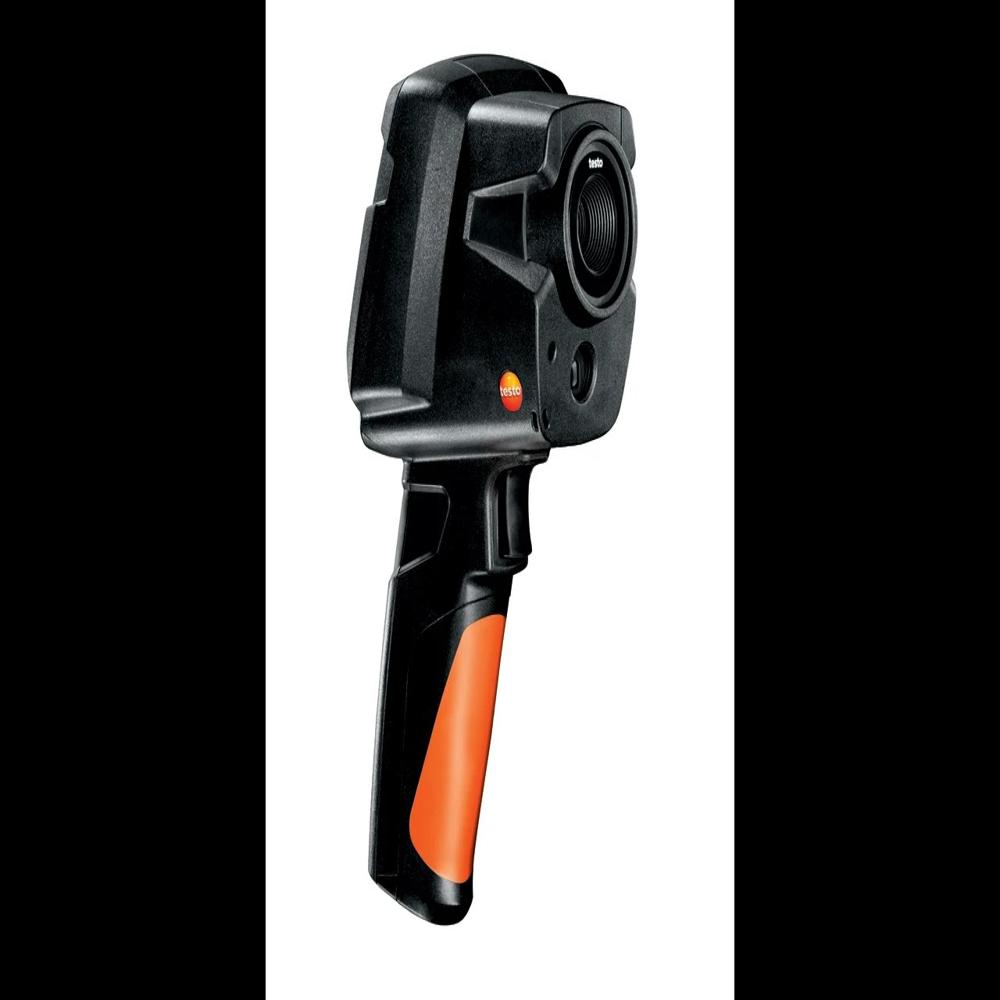

testo 865 - Thermal imager

Name: testo 865 - Thermal imager
Brand: Techmach Industrial Solutions
Price: 16945.0 INR
Availability: InStock

Price 16945.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

testo 865 - Thermal imager Specification

Measuring Range
-20 to +280 C

Application
Building diagnostics, electrical maintenance, HVAC, industrial inspection

Temperature
Operating: -15 to +50 C

Interface Type
USB 2.0

Equipment Type
Thermal imager

Features
SuperResolution, IFOV warner, automatic emissivity input, robust housing, one-handed operation, manual focus-free

Operating Voltage
Not specified (battery powered)

Resolution
160 120 pixels (thermal), up to 320 240 (SuperResolution)

Display Type
3.5 LCD, 320 240 pixels

Automation Grade
Manual

Humidity
20 to 80% RH (non-condensing)

Mounting Type
Handheld

Response Time
< 0.5 seconds

Power Supply
4 x AA, rechargeable or standard

Accuracy
2 C, 2% of reading (higher value applies)

Usage
Thermographic analysis and inspection

Machine Weight
510 g (incl. batteries)

Control Mode
Manual operation

Image Format
.bmt, exportable as .bmp, .jpg, .png, .csv, .xls via PC software

Field of View
31 x 23

Laser Pointer
No

Storage Temperature
-30 to +60 C

Thermal Sensitivity (NETD)
< 0.12 C (100 mK)

Memory
Internal memory for up to 500 images

Protection Class
IP54

testo 865 - Thermal imager Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
5-7 Days

About testo 865 - Thermal imager

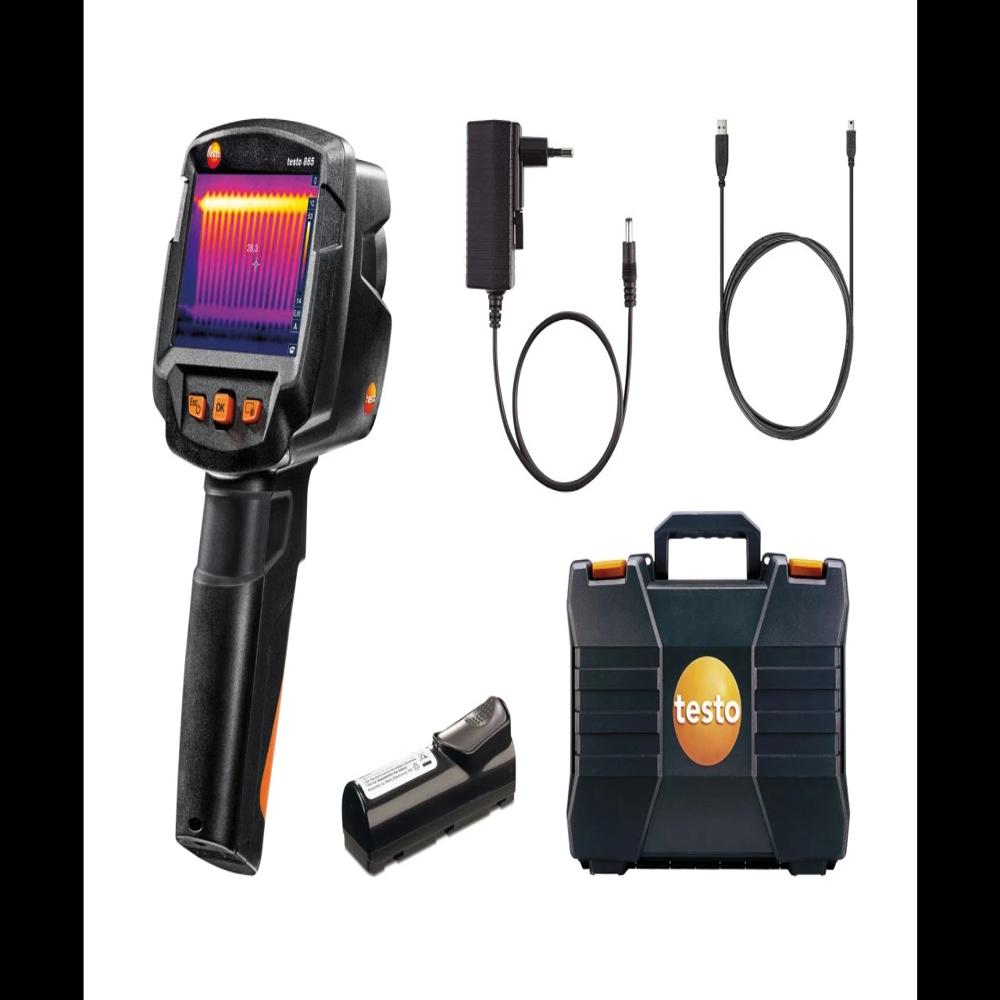

The testo 865 thermal imager combines all the important properties required for high-quality thermographic measurement it is accurate, robust, fast and reliable. The testo 865 provides high-quality thermography at an affordable price and keeps going even in tough working conditions. The case supplied with the thermal imager means it can be conveniently transported, so it is always there for you when needed.

Your advantages

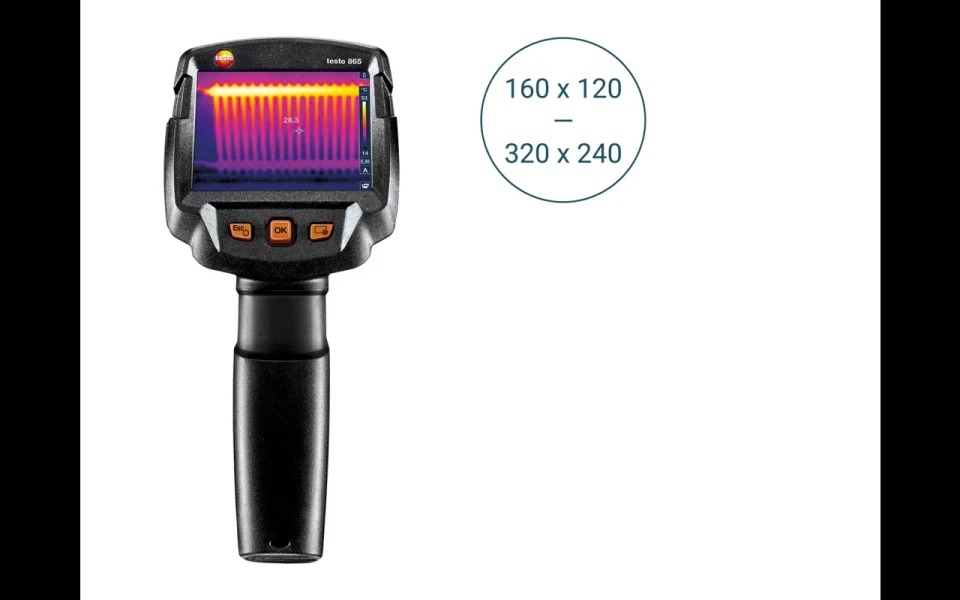

Very good image quality: IR resolution of 160 x 120 pixels, via integrated testo SuperResolution Technology 320 x 240 pixels
Very good measuring accuracy of 2C
Visualizing temperature differences from 0.1C
Automatic detection of hot and cold spots

Advanced Imaging Capabilities

The testo 865 delivers accurate thermal imaging with a base resolution of 160 x 120 pixels, further enhanced to 320 x 240 pixels with the SuperResolution feature. Its field of view (31 x 23) allows users to capture detailed thermal scenarios. The device's automatic emissivity input and IFOV warner aid in obtaining precise temperature measurements, crucial for thorough diagnostics and analysis.

User-Friendly and Durable Design

Designed for ease of use, the testo 865 offers one-handed, manual operation with a focus-free approach. Its rugged housing and IP54 protection ensure reliable performance in harsh conditions. The internal memory accommodates up to 500 images, and the device supports simple image transfer and analysis via USB 2.0 and user-friendly PC software.

Professional Applications Across Industries

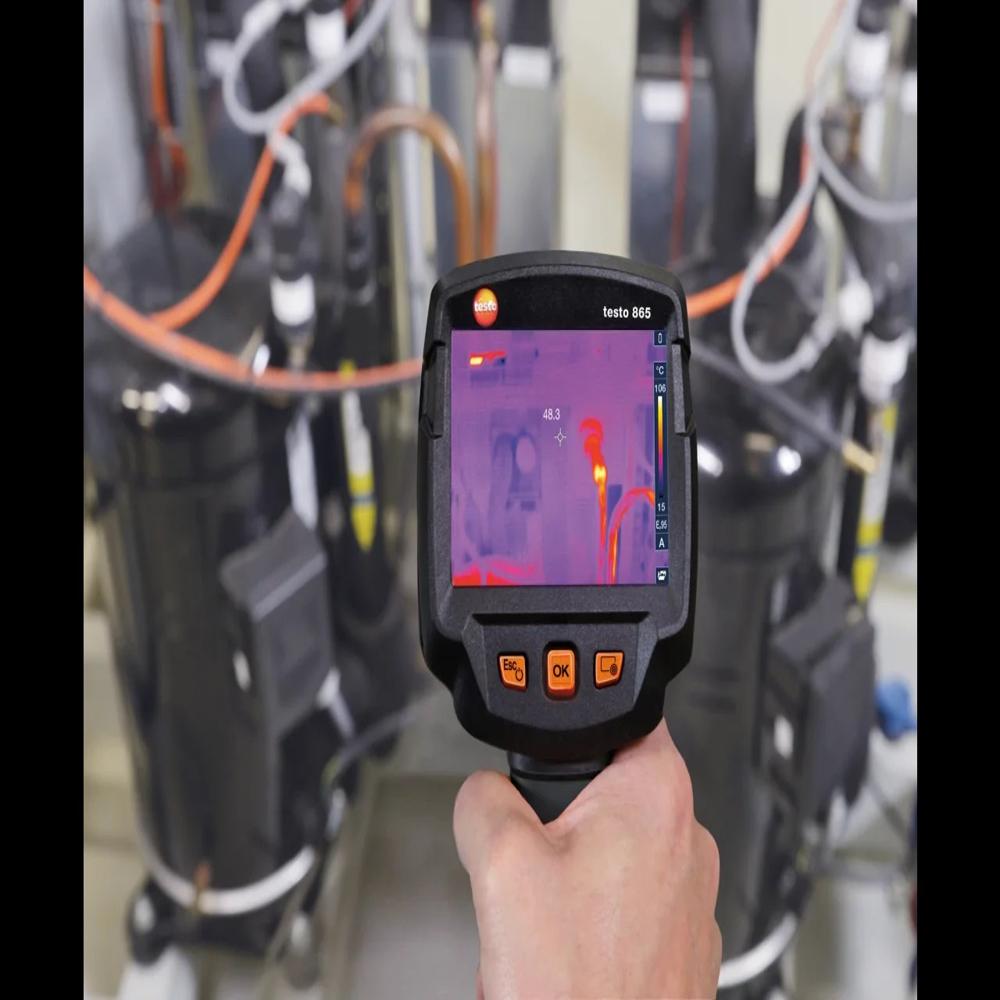

Whether it is for building diagnostics, electrical or HVAC maintenance, or industrial inspection, the testo 865 provides professionals with high accuracy (2C or 2% of reading) and swift results. Its operating range of -15 to +50C and storage range of -30 to +60C make it suitable for a variety of fieldwork scenarios where thermographic evaluation is essential.

FAQ's of testo 865 - Thermal imager:

Q: How does the testo 865 thermal imager enhance thermographic inspections?

A: The testo 865 features SuperResolution technology, raising thermal image quality from 160 x 120 pixels to 320 x 240 pixels. This allows for clearer and more detailed thermal readings, critical for pinpointing issues during building diagnostics, electrical maintenance, and industrial inspections.

Q: What image formats can be exported from the testo 865 and how is this process handled?

A: Images are stored in the .bmt format and can be exported via PC software to common formats such as .bmp, .jpg, .png, .csv, and .xls. Simply connect the imager to a computer using the USB 2.0 interface and utilize the provided software for easy transfer and flexible analysis.

Q: When is the testo 865 most effectively used in professional environments?

A: The testo 865 is best suited for situations requiring quick, accurate thermographic assessments, such as building inspections, maintenance of electrical or HVAC systems, and general industrial applications. Its fast response time (<0.5 s) and wide temperature measurement range make it ideal for routine fieldwork.

Q: Where can the testo 865 be operated and stored safely?

A: The thermal imager can be safely operated in environments with temperatures from -15 to +50C and humidity levels of 20 to 80% RH (non-condensing). For storage, it can withstand temperatures from -30 to +60C, making it suitable for various climate conditions.

Q: What is the process for capturing and managing thermal images with the testo 865?

A: Users operate the testo 865 manually with a focus-free system for straightforward capture. The internal memory stores about 500 images, which can then be easily transferred and managed via USB and PC software, streamlining workflow for analysis and reporting.

Q: How does the testo 865 benefit professionals in the field?

A: This thermal imager offers rugged construction, IP54 protection, one-handed operation, and a battery-powered design for portability. Its accurate, high-resolution imaging and versatile export options optimize efficiency and reliability in demanding field environments.
